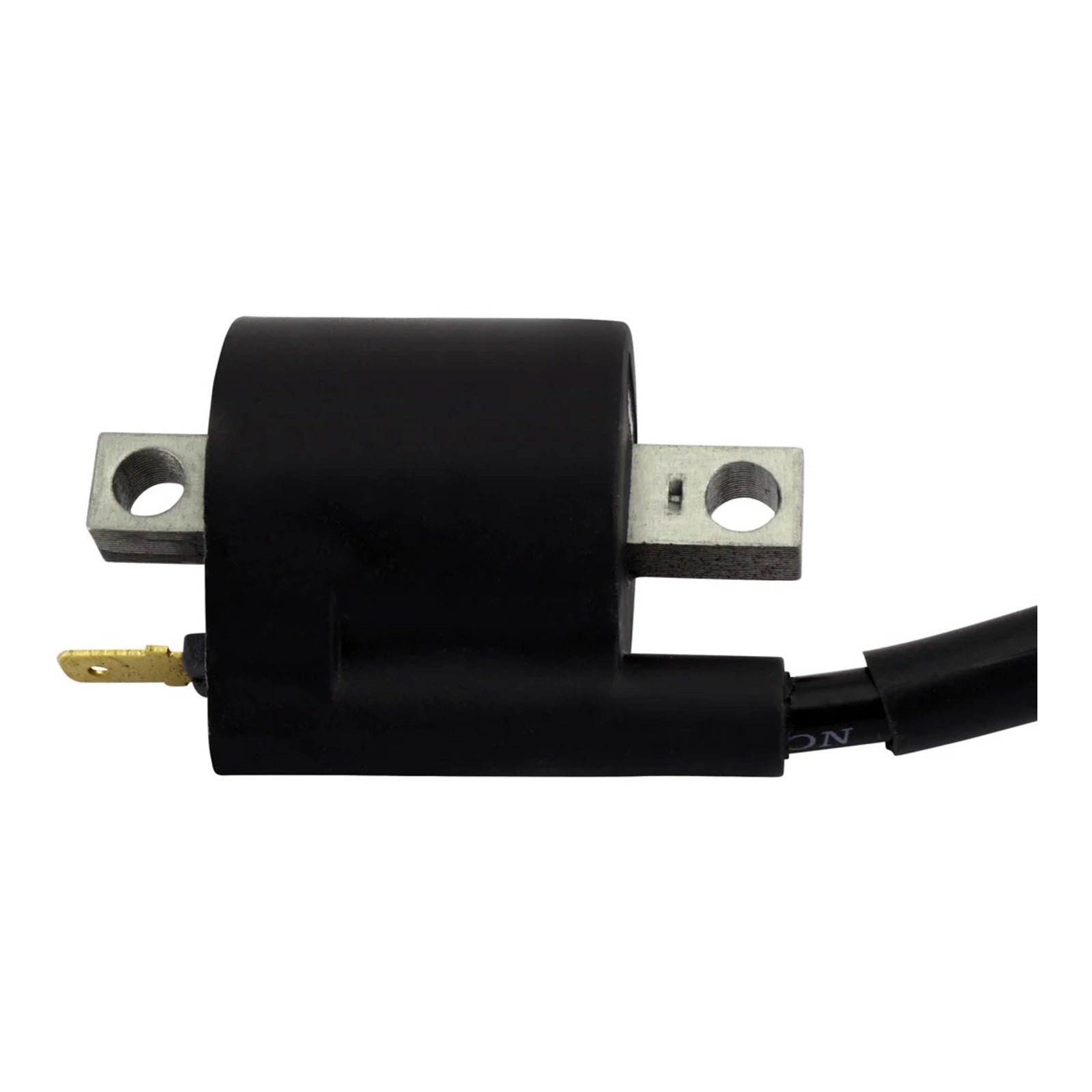

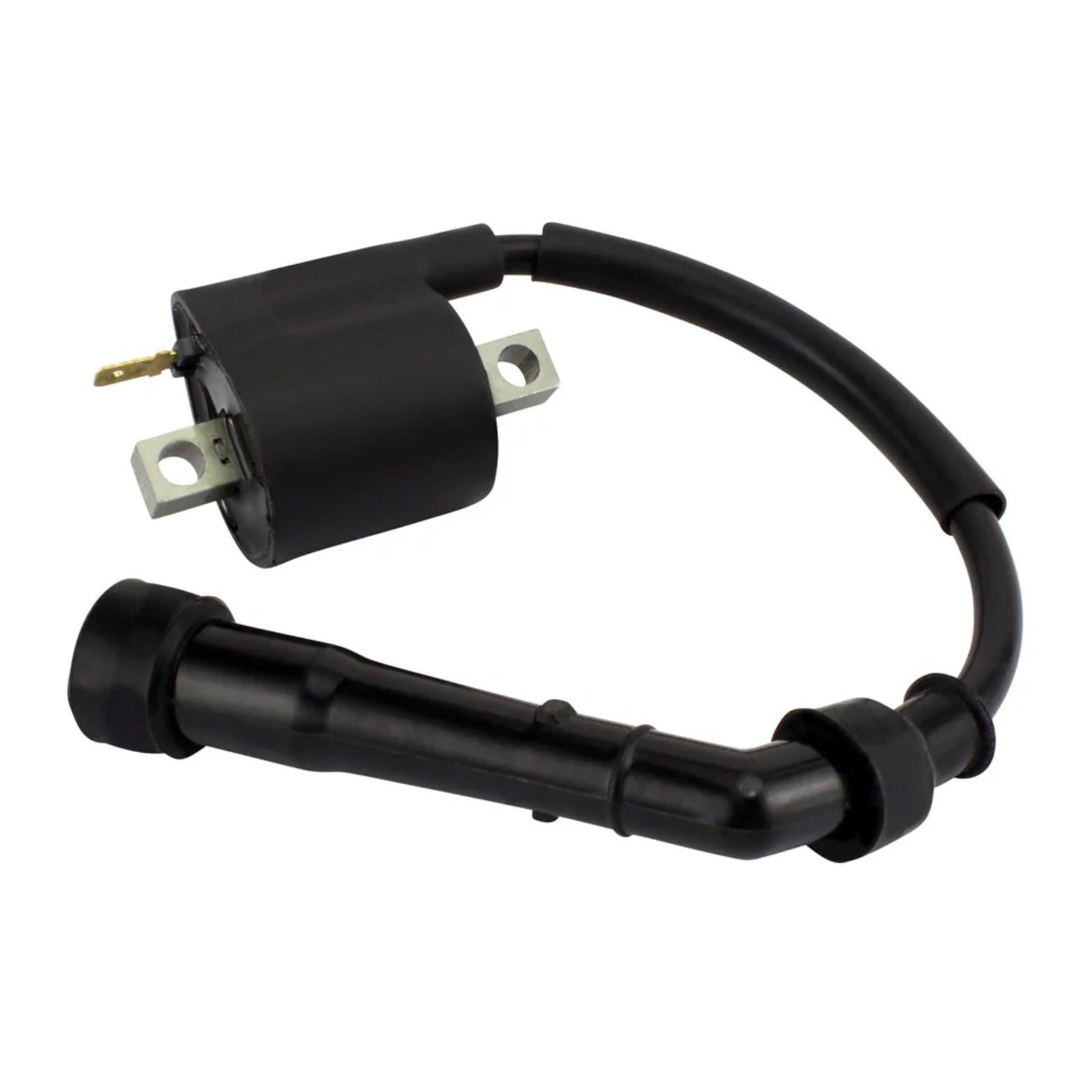

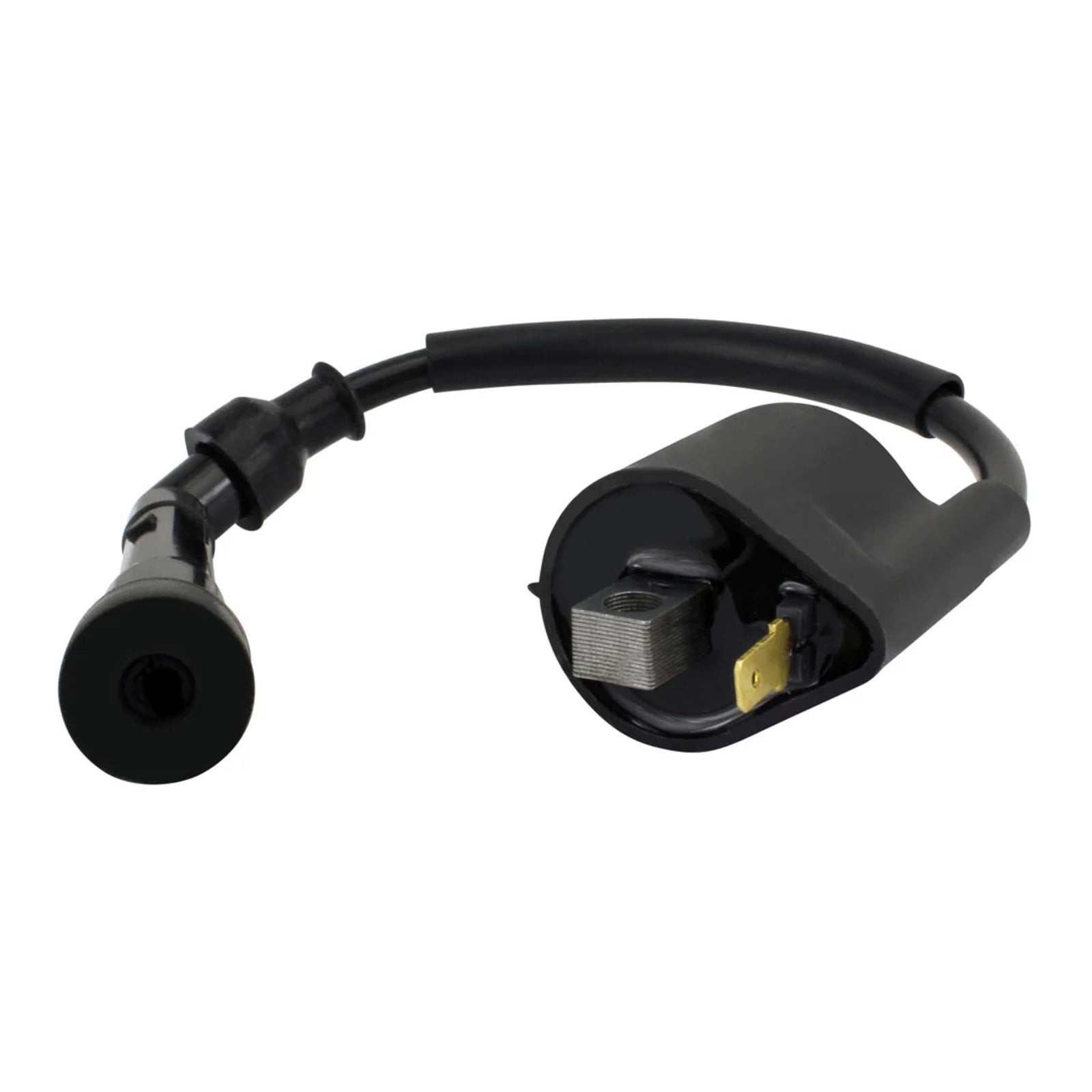

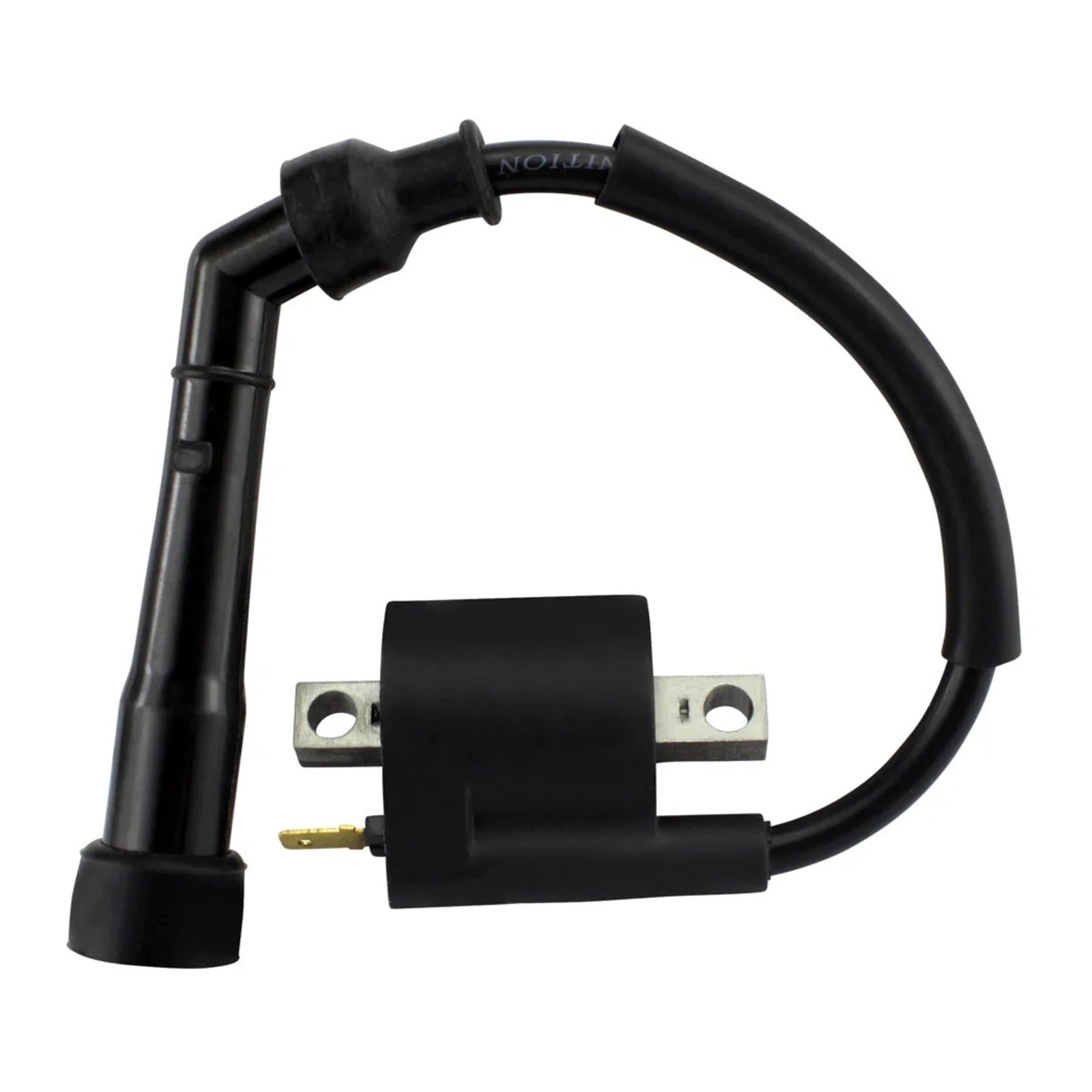

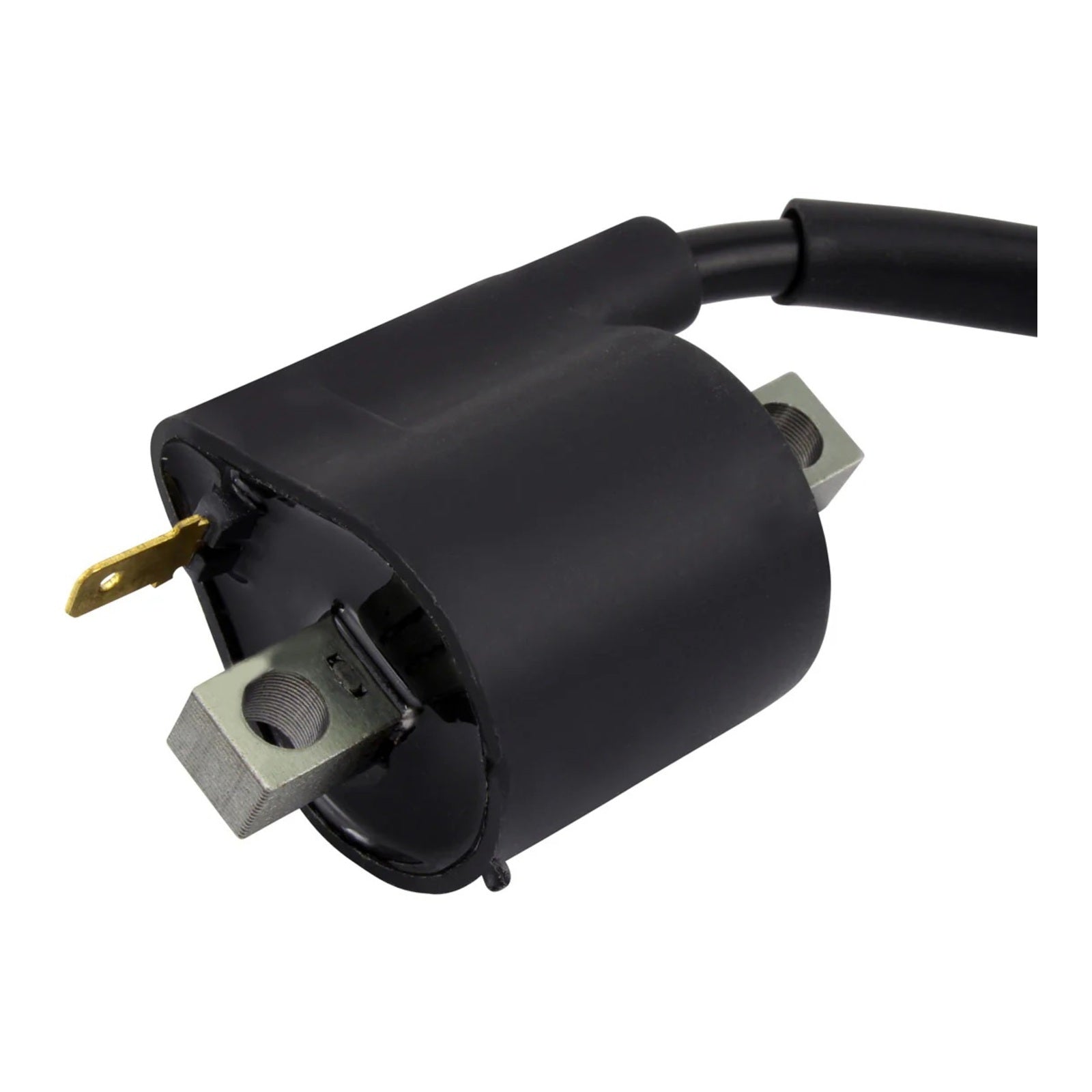

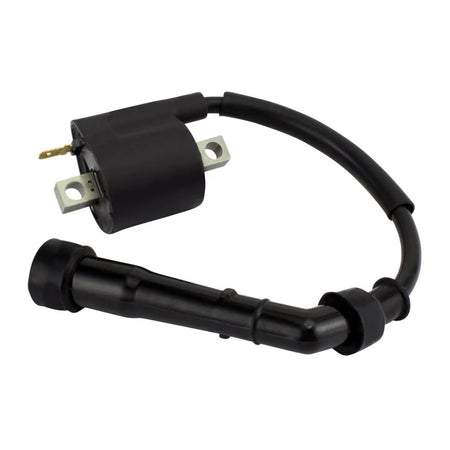

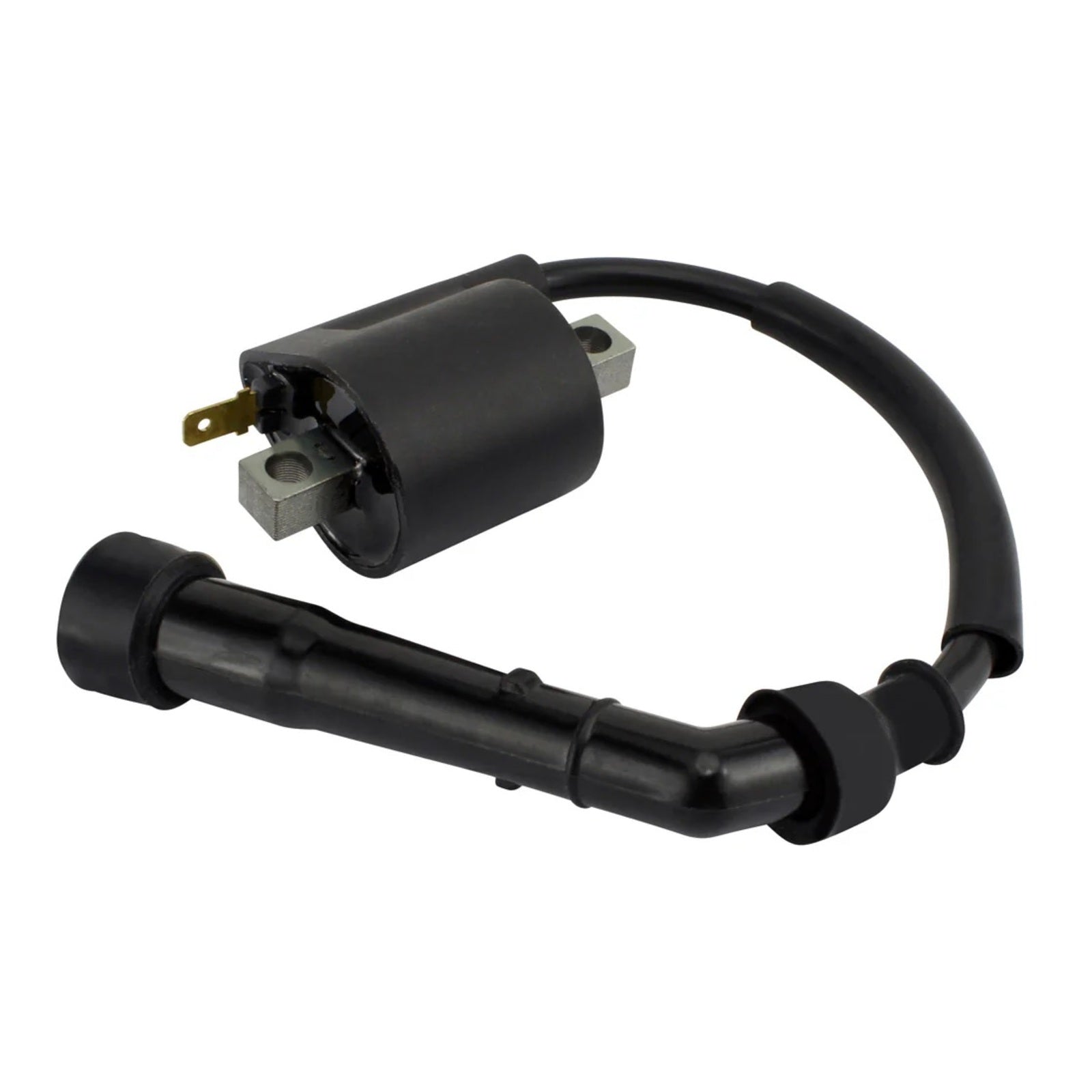

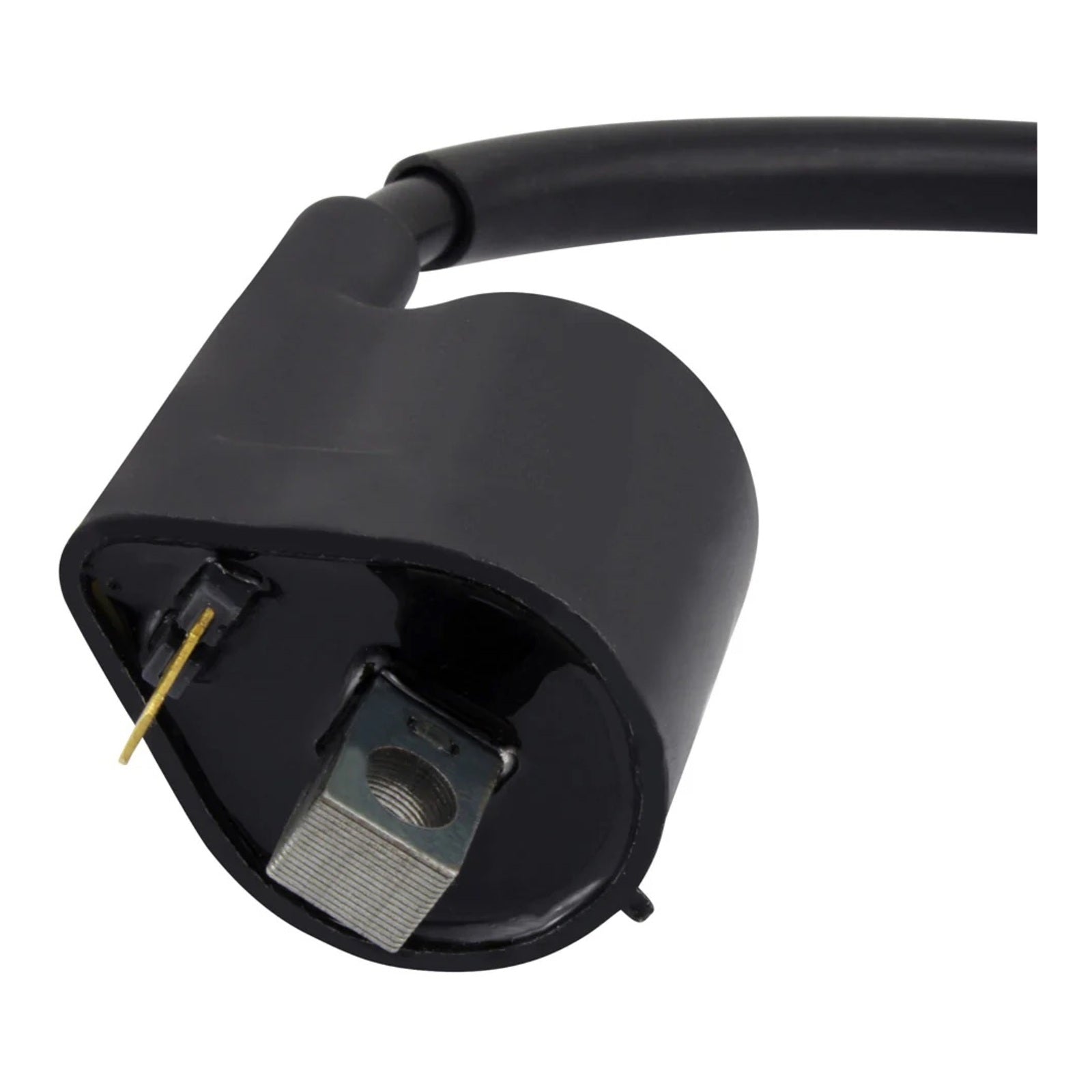

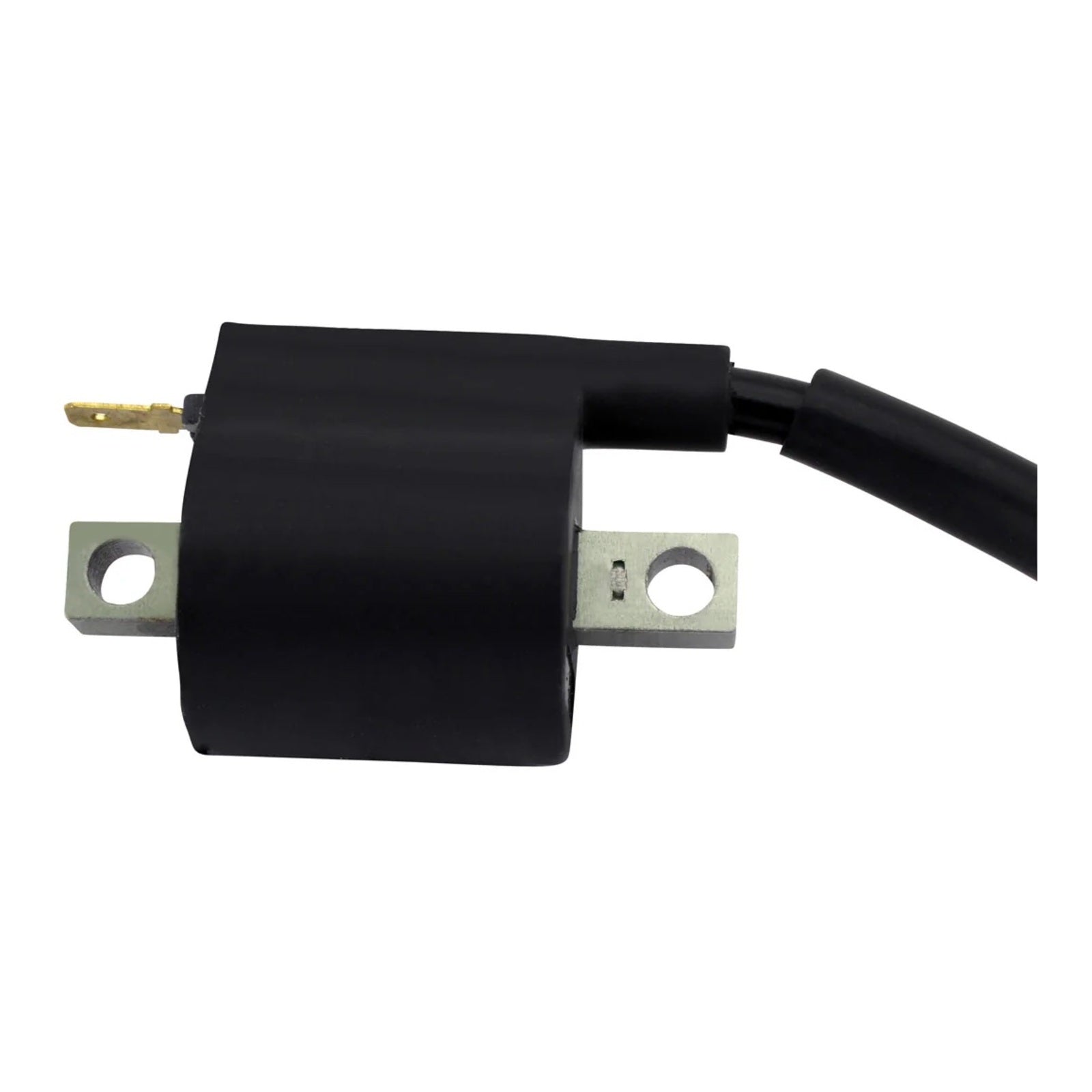

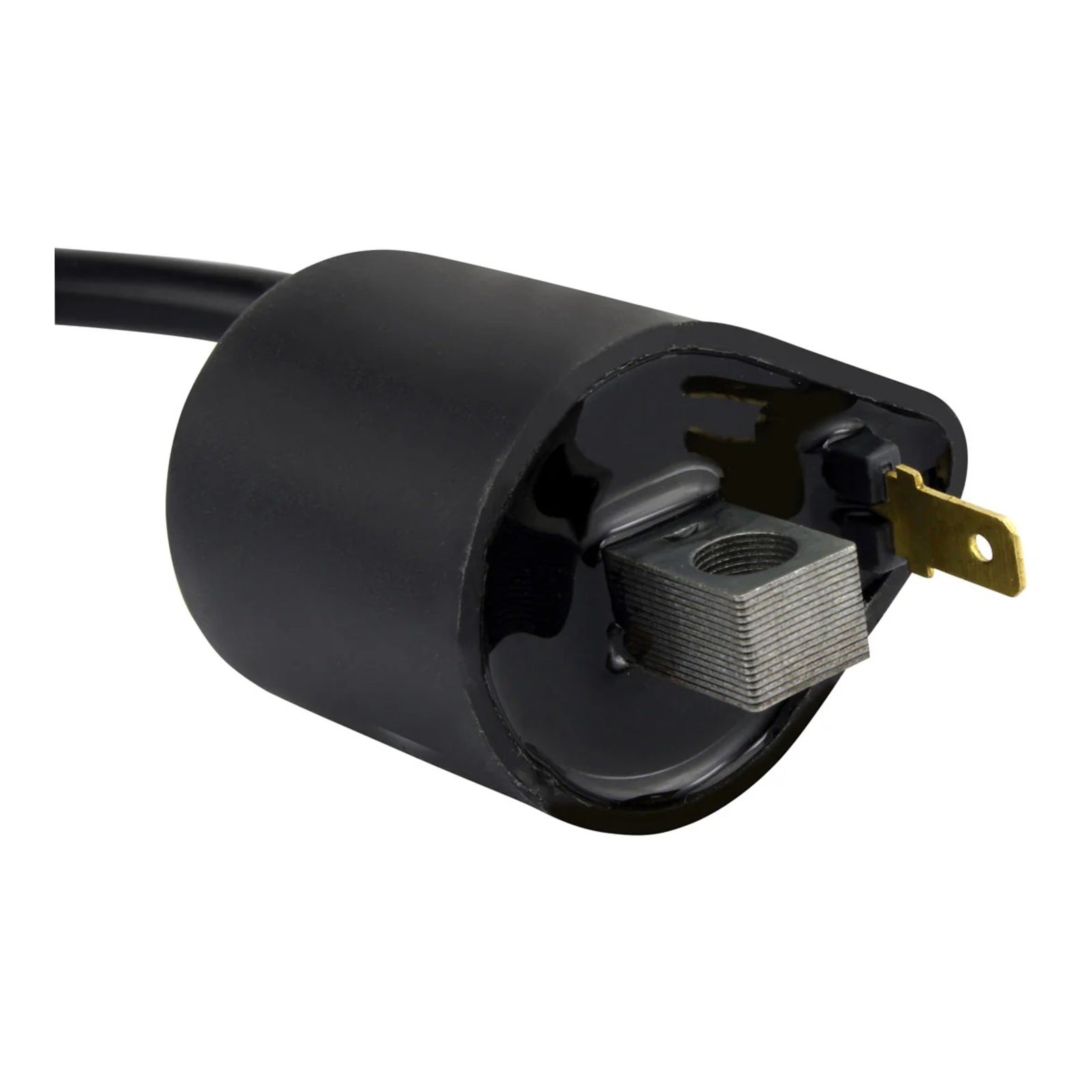

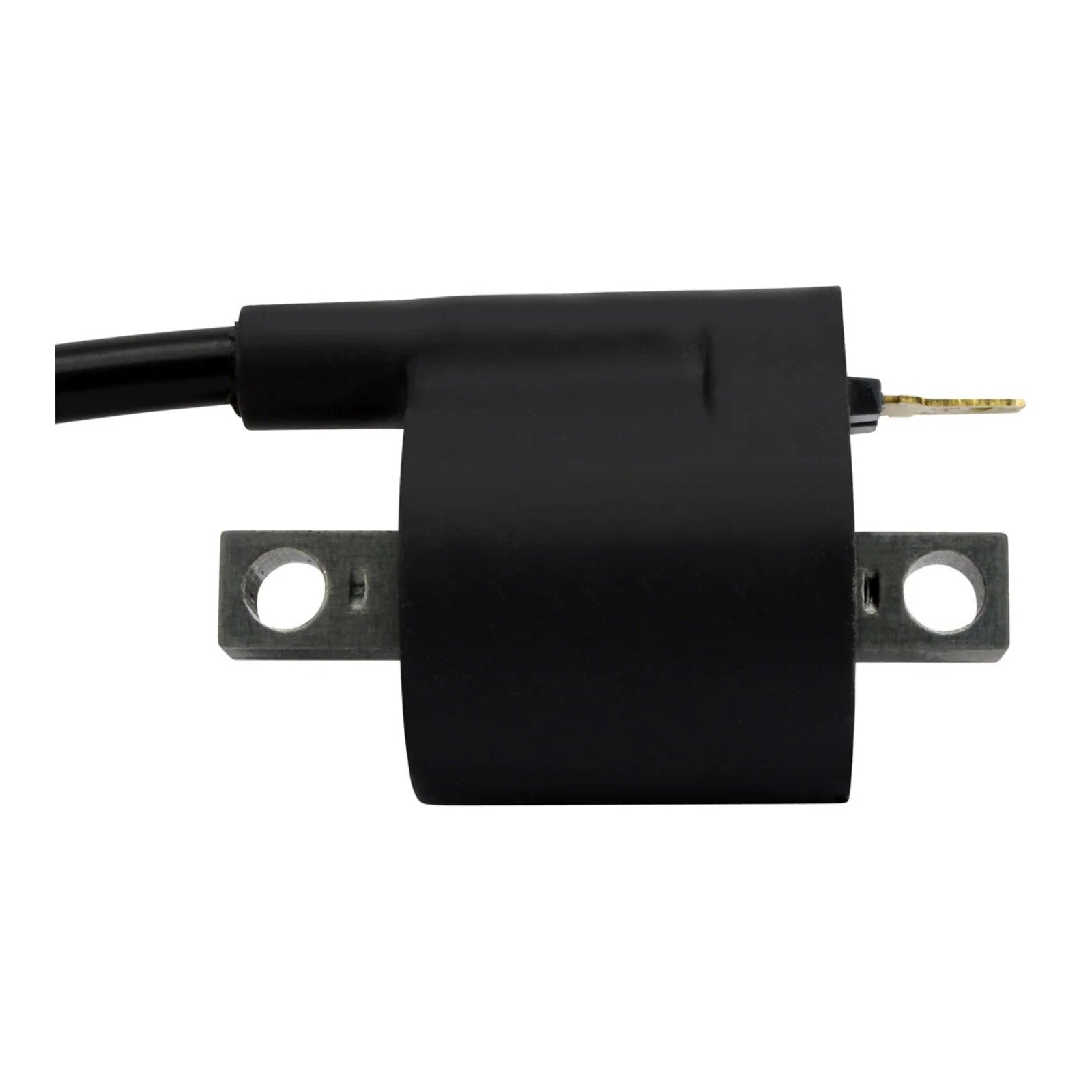

External Ignition Coil with Cap - Suzuki Models

Brand new aftermarket external ignition coil with spark plug cap.

• Direct replacement for the original unit.
• Plug-and-play, direct fit, easy installation.

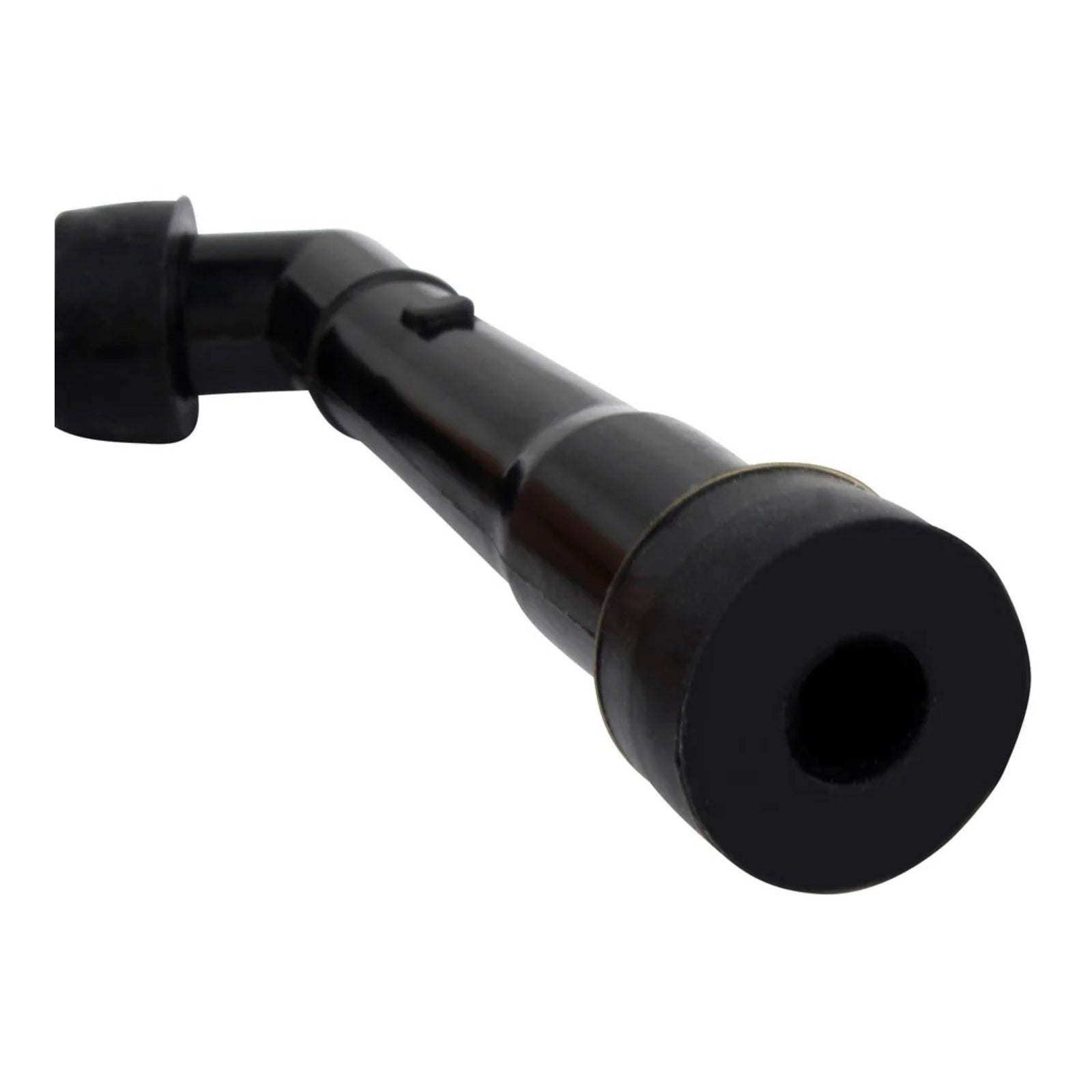

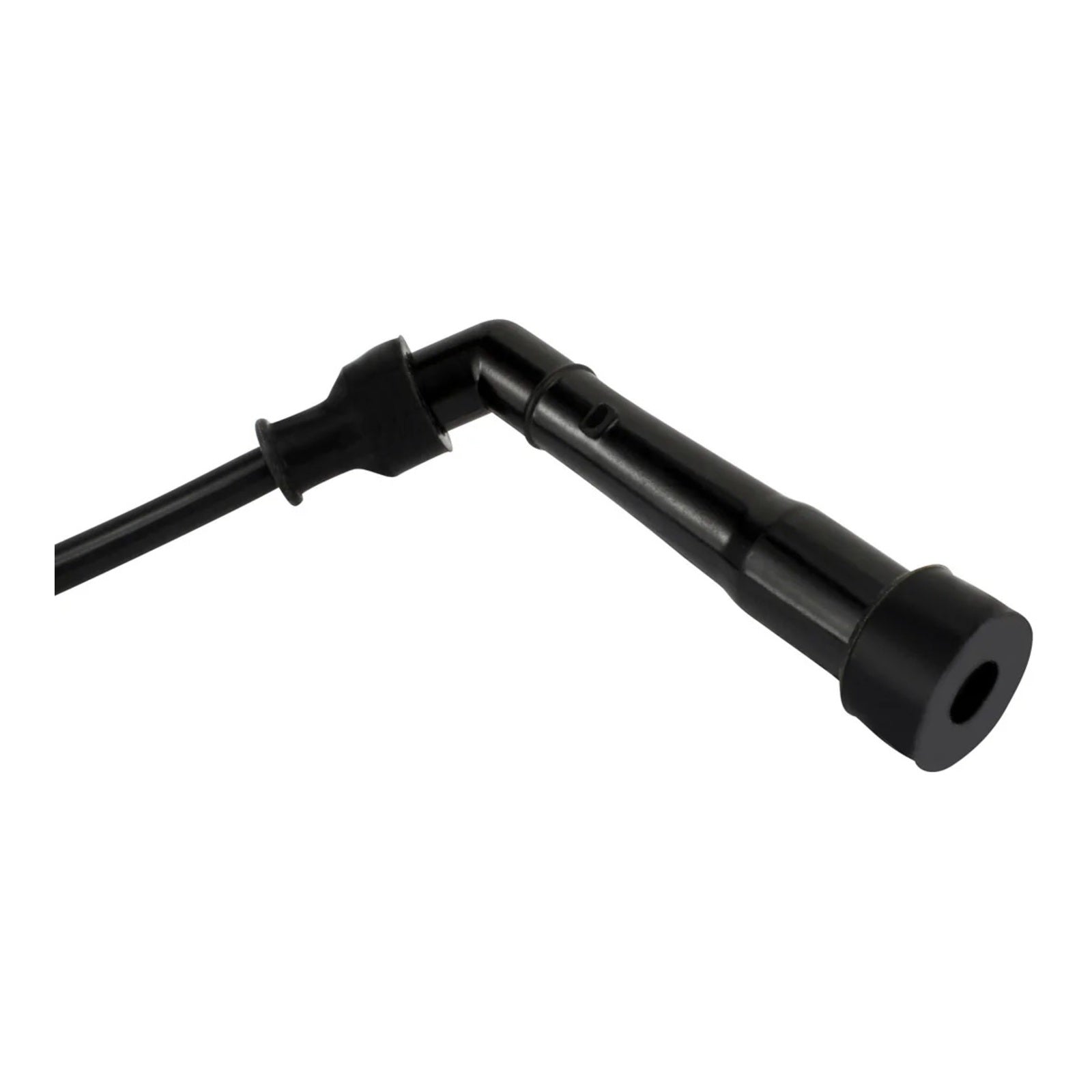

• Spark plug cap included.
• All products shipped are tested.

All item pictures are accurate; if in doubt, do not hesitate to compare the item to the original part.

Direct replacement for the original unit.

Warning:

Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.

Dimensions:

• Width: 46 mm.
• Length: 66 mm.
• Height: 38 mm.
• Wires length: 180 mm.
• Fixation holes centre to centre: 55 mm.
• Primary resistance: 0.9 ohms.
• Secondary resistance without cap: 6.6k ohms.
• Secondary resistance with cap: 16.9k ohms.
